Automatic Feeding Metal Leveler Machine Precision Thin Material Processing Technology
The 3-in-1 feeder press line independently developed by Ruihui Machinery has four advantages: First, the high-end 3-in-1 feeder is used as the main body. The maximum material width is up to 1600mm and the thickness is 0.3mm to 12mm, including precision thin and medium-thin. Four styles of material, medium and thick material, strong and thick material, which integrates material rack, leveling and feeding, simplifying the process, high efficiency and good stability.
Second, the feeding precision is high, the reliability is good, the feeding precision is usually within ±0.02mm, and the unique automatic detecting device can automatically monitor various operating states in the stamping production, and fundamentally ensure the product quality.
Third, the operation is stable and the degree of automation is high. The 3-in-1 feeder is equipped with a press arm, a stop arm, a support arm, and a hydraulic pressure leveling device. The automatic feeding can be completed without manual assistance. The original horizontal motor The transmission type press arm can be pressed in real time according to the change of the material roll, so that the material will not spread loosely, and the real-time smoothing of the unwinding of the discharge can be ensured.
Fourth, the floor space is small, the structure is compact, and the space occupied by the plant is saved. At the same time, the part of the coil and the whole feeding head are modularly assembled, and the bottom plate is connected through the lower end, which is flexible, easy to assemble and transport, and adaptable in space layout.

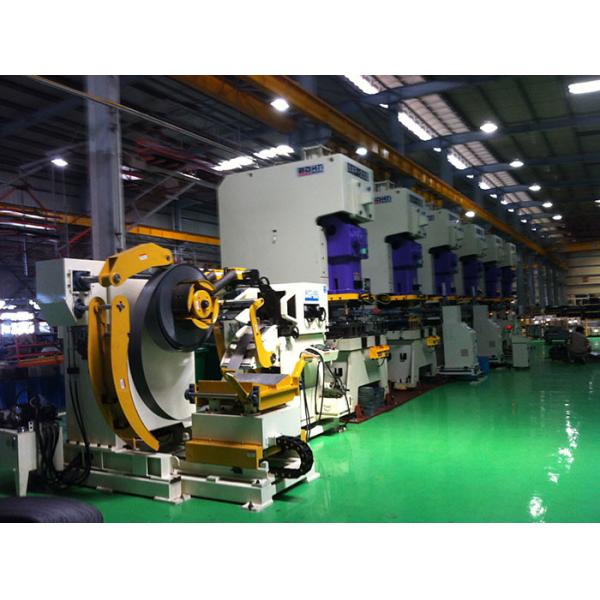

The 3-in-1 feeder press line is a short-flow stamping system. The whole system is stable and efficient, and the waiting area is small. It is equipped with automatic feeding detection function to avoid the feeding action not being in place, and realize high-precision automatic feeding. It is the majority of 3C customers and automobile manufacturing customers. best choice.
Products:
Specification:
| Model | MAC2-400 | MAC2-500 | MAC2-600 | MAC2-800 |
| Stock Width(mm) | 50-400 | 50-500 | 50-600 | 50-800 |
| Stock Thickness(mm) | 0.3~3.2 | 0.3-3.2 | 0.3-3.2 | -3.2 |
| Max.Coil Weight(kg) | 3000 | 3000 | 3000 | 5000 | 5000 | 7000 |
| Max.Coil O.D.(mm) | 1200 | 1200 | 1200 | |
| Coil I.D.(mm) | 8 | 8 | 508 | 508 |
| Feed Length(mm) | ~500* | ~500* | ~500* | ~500* |
| Max. Line Speed(m/min) | 16-24 | 16-24 | 16-24 | 16-24 |
| Work Roll Number(pieces) | upper 6
lower 5 | upper 6
lower 5 | upper 6
lower 5 | upper 6
lower 5 |
| Feed Roll Number(set) | 1 | 1 | 1 | 1 |
| Main Motor(kw) | AC2.9 | AC2.9 | AC4.4 | AC4.4 |
| Mandrel Expansion | hydraulic | hydraulic | hydraulic | hydraulic |
| Reel Motor(kw) | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 3.7 |
| Power(V) | 3 Phase 220V/380V/50HZ |
| Operating Air(Mpa) | 0.49 | 0.49 | 0.49 | 0.49 |
Straigtening performance:
| tock Thicknees (mm) | Stock Width (mm) |
| 0.3 | 400 | 500 | 600 | 800 |
| 0.4 |
| 0.6 |
| 0.8 |
| 1.0 |
| 1.2 |
| 1.4 |
| 1.6 | 470 | 470 |
| 1.8 | 400 | 400 |
| 2.0 | 360 | 360 |
| 2.3 | 300 | 300 | 300 | 300 |
| 2.5 | 230 | 230 | 230 | 230 |
| 2.8 | 150 | 150 | 150 | 150 |
| 3.2 | 110 | 110 | 110 | 110 |
*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi
1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.
2. After-Sales service:We have an efficient team to meet 24*7 all day service.
3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
4. Engineers can provide service machinery overseas.
